Rubber Conveyor Belt Vulcanizing Machine Portable Conveyor Belt Vulcanising Machine

Brand Name : WS

Model Number : DGLJL

Place of Origin : China

Product Name : Conveyor Belt Vulcanising Machine

Applicable Industries : Machinery Repair Shops, Construction works , Energy & Mining

Vulcanization Pressure : 1.5mpa

Vulcanization Temperature : 145℃

Vulcanization Plate Temperature Difference : ±5℃

Temperature Adjustment Range : Room Temperature ~ 200℃

Heating Time : Not More Than 50 Minutes

Timing Adjustment Range : 0~99min

Voltage : 380V, 50Hz

Power : 36KW

Pressurization Of Upper And Lower Heating Plates : After 08mpa

Cooling Water Source Pressure : ≥0.2Mpa

Drop From 145℃ To 60℃ : ≤10 minutes

Contact Now

Rubber Conveyor Belt Vulcanizing Machine Portable Conveyor Belt Vulcanising Machine

Product Description

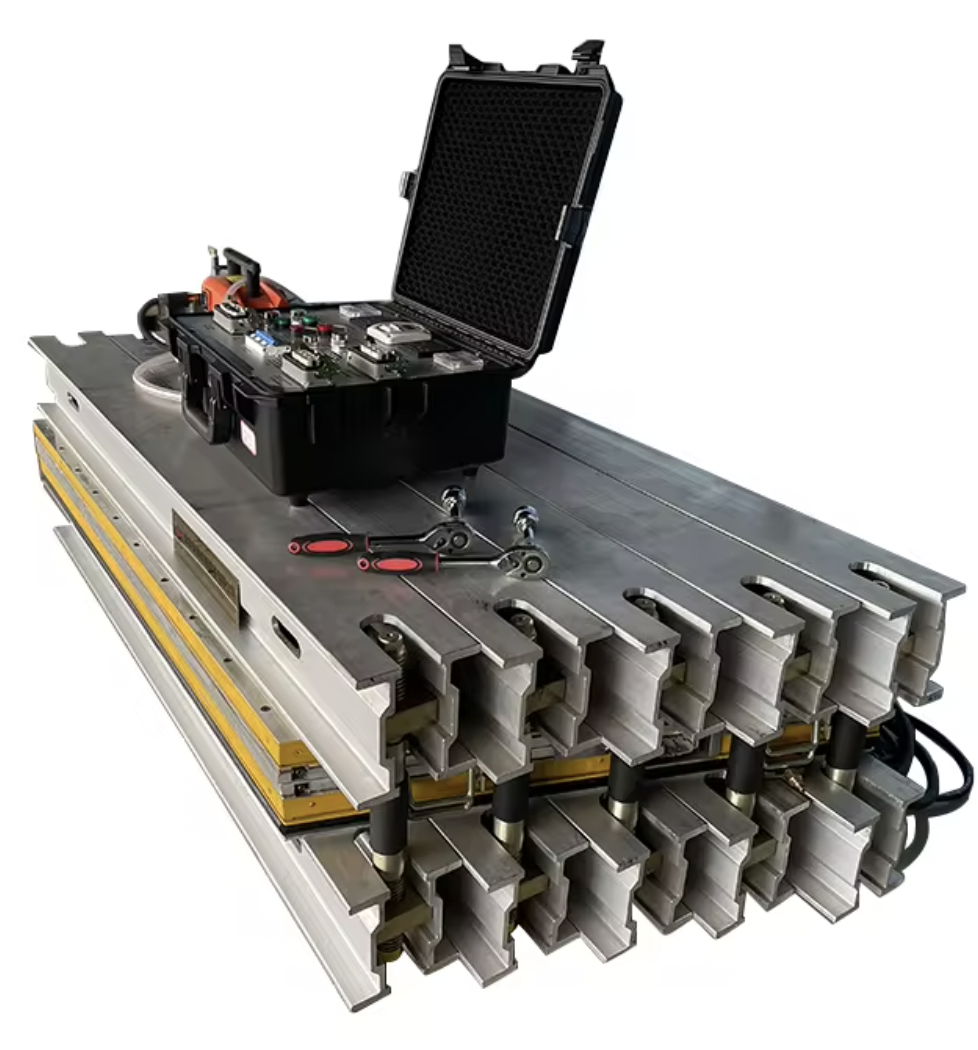

Portable Conveyor Belt Vulcanising Machine used conveyor belt vulcanizer is made of aluminum alloy, small volume and light weight, three-phase source of power supply. The temperature of the heating plate is uniform. Water press system can supply stable press.

Portable Conveyor Belt Vulcanizing Machine has aluminum frame that allows for quick and easy operations. Offer great hot vulcanized splicing for all fabric ply belts. The frame includes end handles and positioning rings (for larger models), it can easy to maneuver into the desired splice position.

Product Parameter

Model	Vulcanized tape width	Specification	Heating plate size (mm)	Power	Dimensions (mm)	Weight
Model	(mm)	(mm)	Heating plate size (mm)	(kw)	(L×W×H)	(kg)
DGLJL-1-650	650	650×830	820×830	10.8	1322×830×585	440
DGLJL-1-650	650	650×1000	820×1000	13	1384×1000×585	530
DGLJL-1-800	800	800×830	995×830	12.7	1492×830×585	515
DGLJL-1-800	800	800×1000	995×1000	15.4	1554×1000×585	630
DGLJL-1-1000	1000	1000×830	1228×830	15	1692×830×585	600
DGLJL-1-1000	1000	1000×1000	1228×1000	18	1754×1000×585	715
DGLJL-1-1200	1200	1200×830	1431×830	18.2	1922×830×750	800
DGLJL-1-1200	1200	1200×1000	1431×1000	22	1984×1000×750	912
DGLJL-1-1400	1400	1400×830	1653×830	20.6	2142×830×750	885
DGLJL-1-1400	1400	1400×1000	1653×1000	24.6	2204×1000×750	1050
DGLJL-1-1600	1600	1600×830	1867×830	22.8	2382×830×795	1130
DGLJL-1-1600	1600	1600×1000	1867×1000	27.2	2444×1000×795	1325
DGLJL-1-1800	1800	1800×830	2079×830	25	2592×830×900	1420
DGLJL-1-1800	1800	1800×1000	2079×1000	30	2654×1000×900	1630
DGLJL-1-2000	2000	2000×830	2303×830	27.4	2792×830×900	1560
DGLJL-1-2000	2000	2000×1000	2303×1000	33	2854×1000×900	1824
DGLJL-1-2200	2200	2200×830	2478×830	30	2992×830×980	1720
DGLJL-1-2200	2200	2200×1000	2478×1000	36.2	3054×1000×980	2030

Rubber Conveyor Belt Vulcanizing Machine Portable Conveyor Belt Vulcanising Machine

Product Application

1. Steel Cord Belt Intermediate Rubber is an uncured rubber for hot vulcanized belt splicing.

2. It is designed to use as an inter-core cord rubber replacement material in splicing steel cord conveyor belts or a tie gum in fabric belts.
3. The material is designed to bond to cured intercore rubber and wire cords in all standard grade steel cord conveyor belts, as well as fabric belt cured skim rubber and general bond improvement material for general grade fabric conveyor belts.

Our Service

1. Overseas service and technical support can be supplied
2. We will get the machines dispatched within the stipulated time
3. 24 hours online service, immediate response to your request
4. Testing machine is available, make sure customer satisfied with machine's quality
5. Help customer to design, make drawing,accept OEM rubber machine
